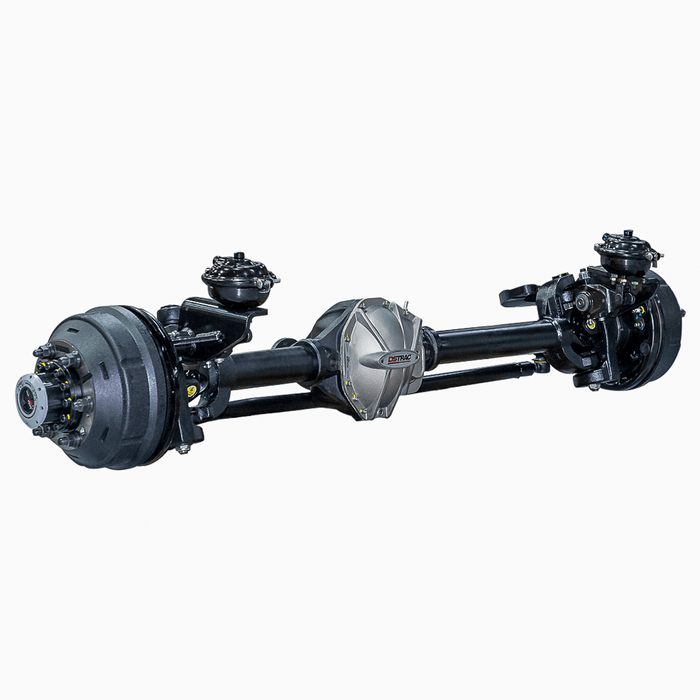

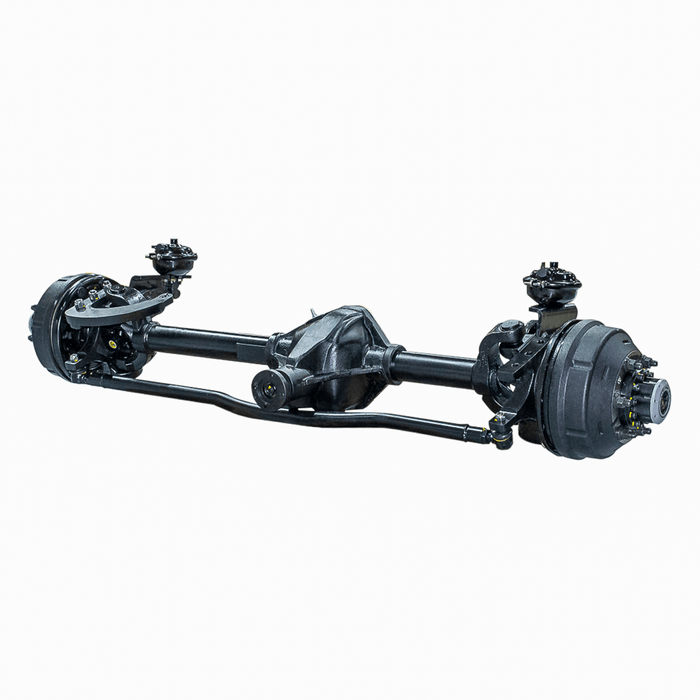

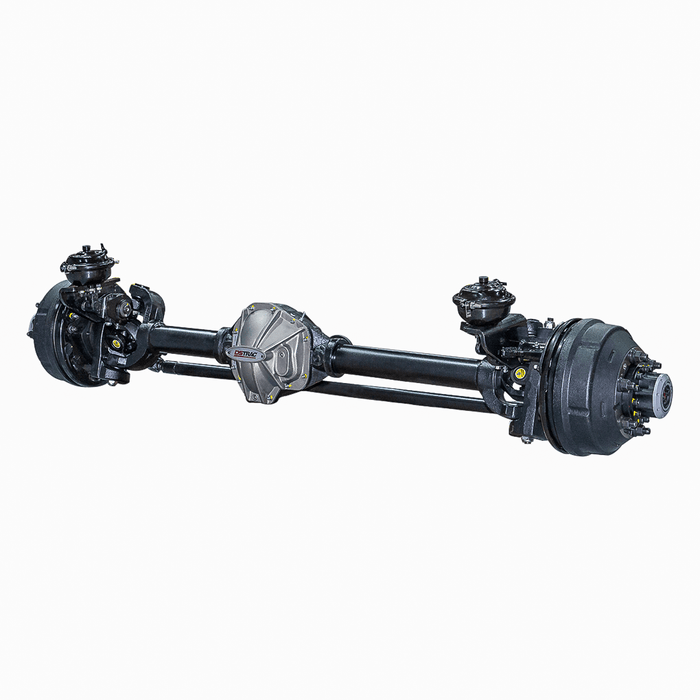

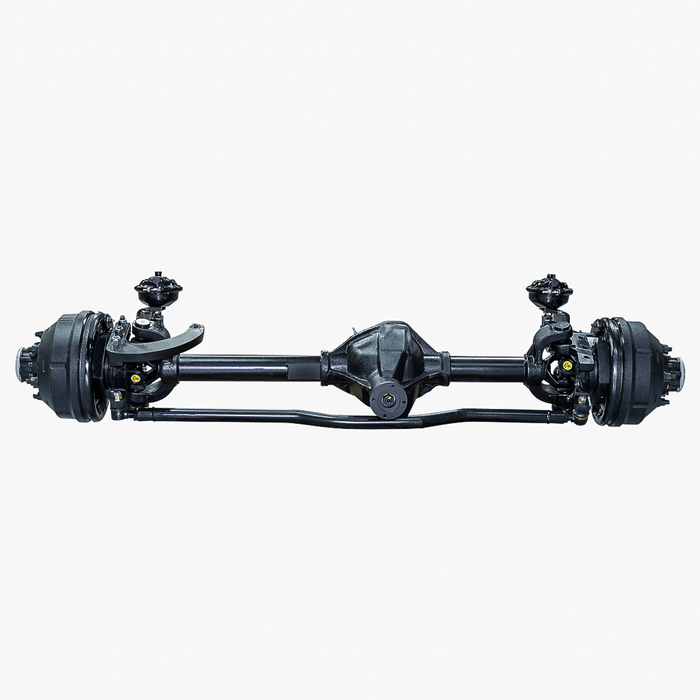

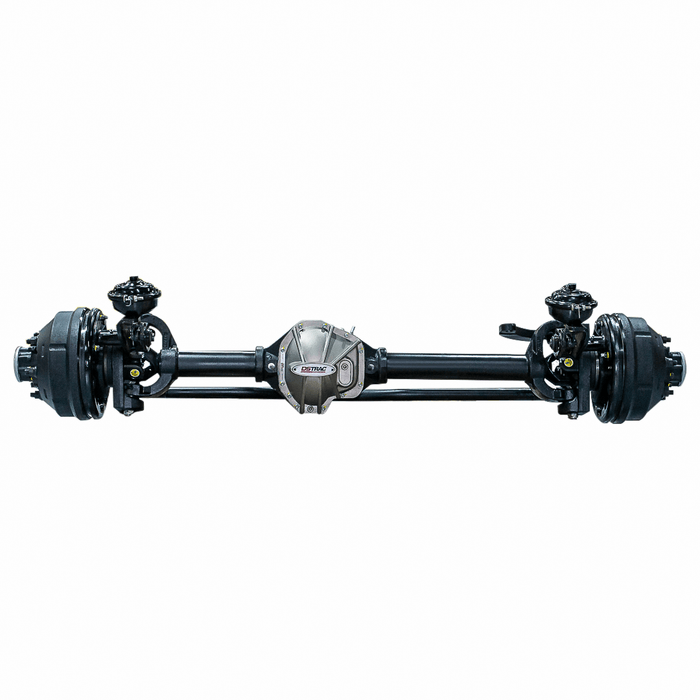

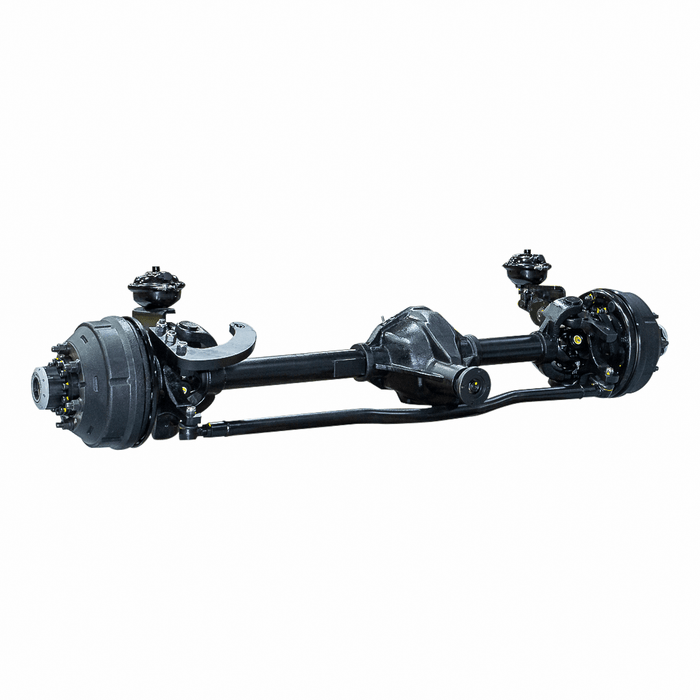

Front Steering 70 Truck Axle 35-Spline

Axle 70 designed for trucks and buses 4x4 with special steering arm

Equipped with our housing Ultra 70 high or low pinion 70

• DSTRAC truck axles have a Gross Axle Weight Rating (GAWR) of 7,000 pounds
• Heavy Duty 3.5" diameter, 1/2" wall axle tubes
• DSTRAC size 70 Knuckles
• DSTRAC 35-spline SAE 4340 Chromoly axle shafts
• DSTRAC U-joints made of forged SAE 4340 chromoly with self-lubricating bushing caps
• F250/350 Lower Ball joints (same used top/bottom) available around USA
• DSTRAC Forged Yoke shaft 1550
• Free wheel manual locking hubs 2.5 ton - 35 splines
• Heavy Duty air drum brakes or Brembo disc caliper
• 6 lug (6 x 205mm)
• Steel cover with magnetic bolt
• Special triple seal to prevent water and clay from entering the axle
• Spool, air locker, or electric locker 70 available

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
