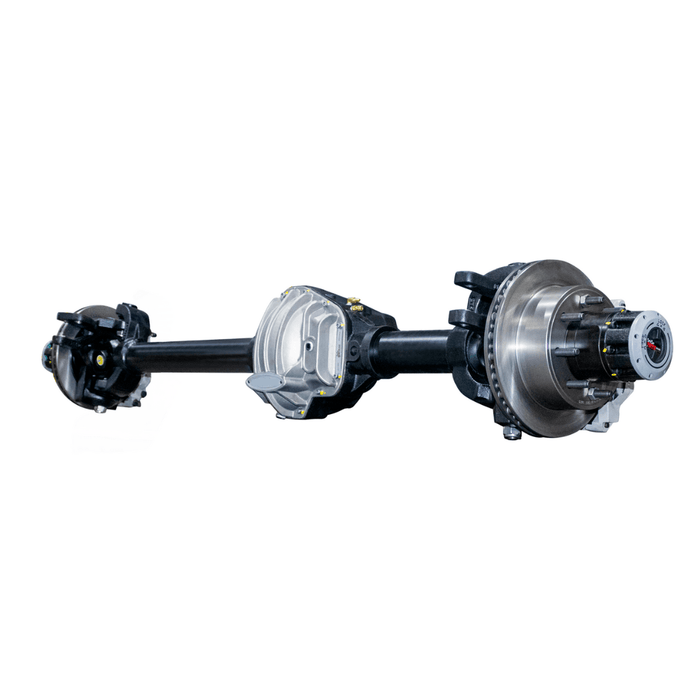

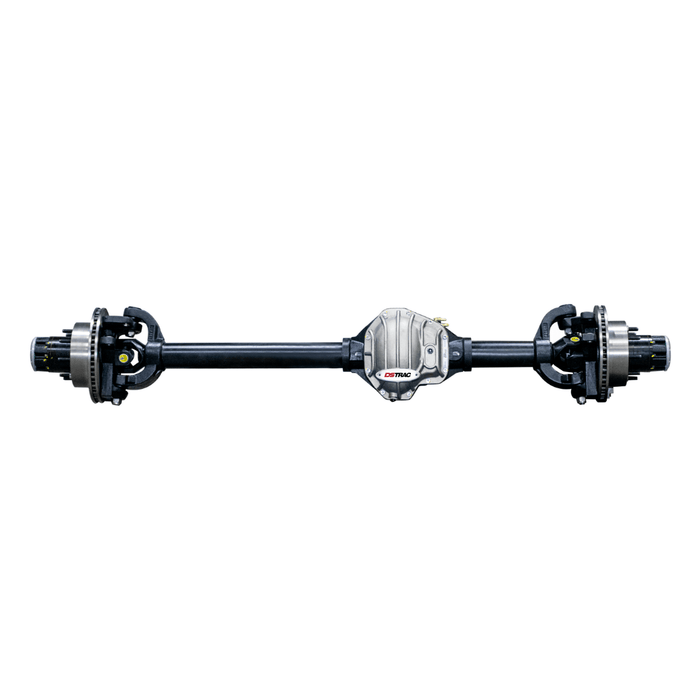

Front Steering 70 Racing Axle 40-Spline

Strongest steering front or rear axle for competition or racing off-road projects.

Equipped with our housing Ultra 70 high or low pinion 70. Special design from innovative housing project where a 60 or 70 ring can be mounted, also high pinion rear axle but with a reduced external size.

• Front Axle or rear axle steering
• Heavy Duty 3.5" diameter, 1/2" wall axle tubes.
• DSTRAC size 70 Knuckles
• DSTRAC 1.72" 40-spline SAE 4340 Chromoly axleshafts
• DSTRAC U-joints made of forged SAE 4340 chromoly with self-lubricating bushing caps
• F250/350 Lower Ball joints (same used top/bottom) available around USA.
• DSTRAC Forged Yoke shaft 1550
• Optimal free wheel manual locking hubs 2.5 ton 40 splines
• Full hydro steering option
• Vented rotor disc brake assemblies
• 8 lug (8 x 6.5" & 170) with double bolt pattern
• Steel cover with magnetic bolt
• Special triple seal to prevent water and clay from entering the axle
• Heavy Duty 12.9" vented Rotors / 4 Piston Disc brake assemblies
• Spool, air locker, or electric locker 70 available
• Able to use rear axle with steering joystick system

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
