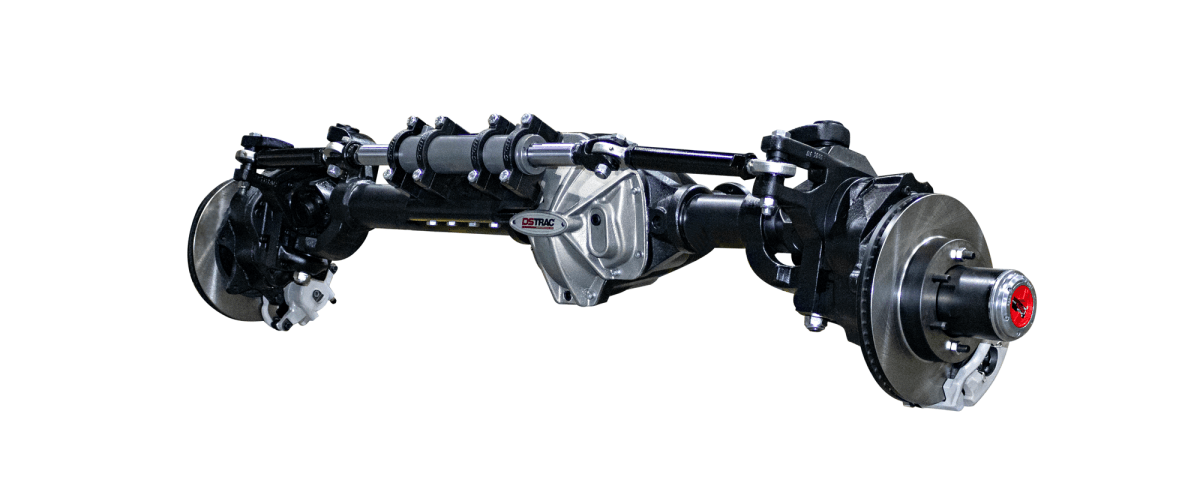

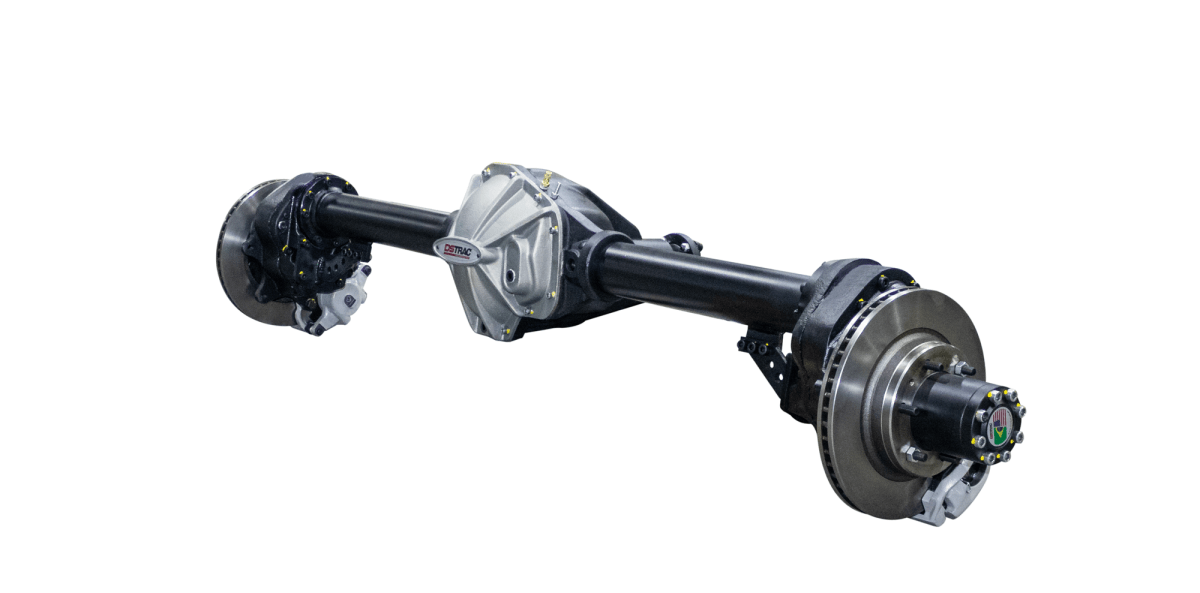

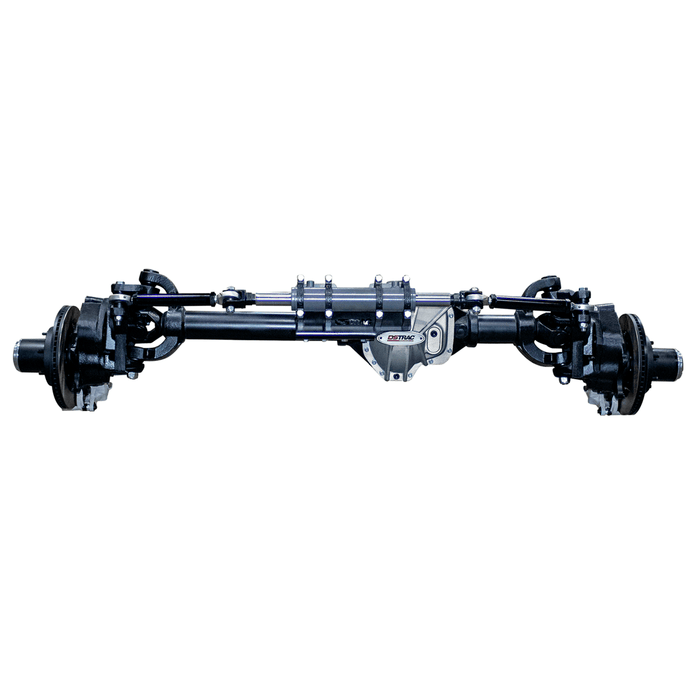

DSTRAC Portal 70 - 35 Spline (Set)

Equipped with our Ultra 70 high pinion, an innovative housing design where a 60 or 70 ring can be mounted, but with a reduced external size.

Front and Rear Axles

• In the 70 ring with a 10.5" diameter
• Portal Gear reduction 1:1.20
• Full float axle Design
• Portal housing with 4 gears made from SAE 4320 Chromoly
• Will lift the car 5" with stock suspension.
• Heavy Duty 88.9mm/3.5" diameter, 12.7mm/1/2" wall axle tubes.
• DSTRAC 38mm/1.50" 35-spline 4340 Chromoly axle shafts
• DSTRAC Forged Yoke with size options
• 70 Portal hubs with 38mm splines output diameter 42mm/1.65"
• Vented rotor disc brake assemblies
• 8 x 6.5" & 170mm bolt pattern available.
• DSTRAC Abs retrofit (available for some models)
• Steel cover with magnetic bolt
• Special triple seal to prevent water and clay from entering the axle
• Heavy Duty 13.2" vented Rotors brake assemblies

This axle is also available with rear steering.

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
