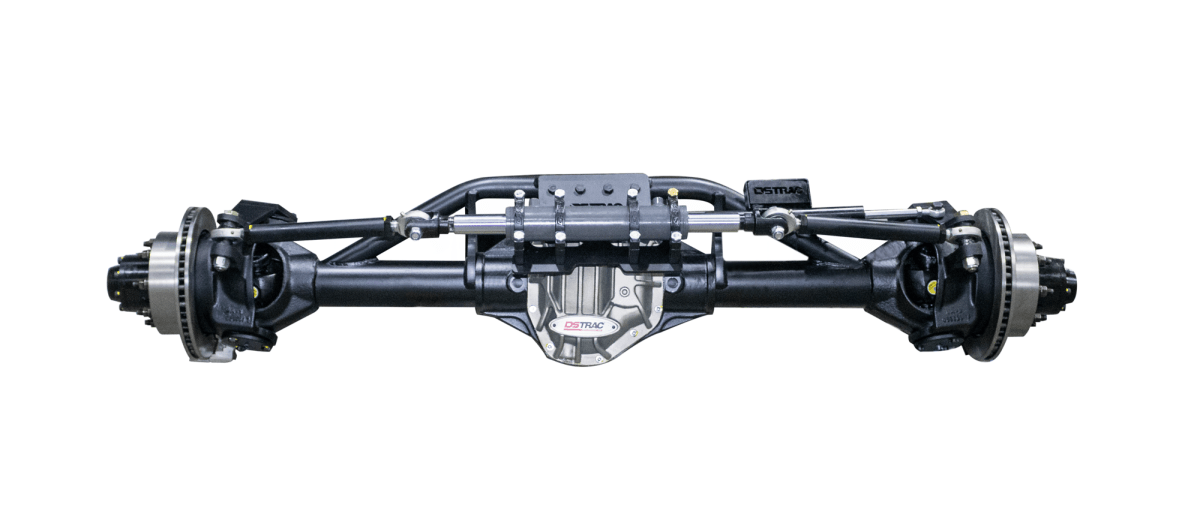

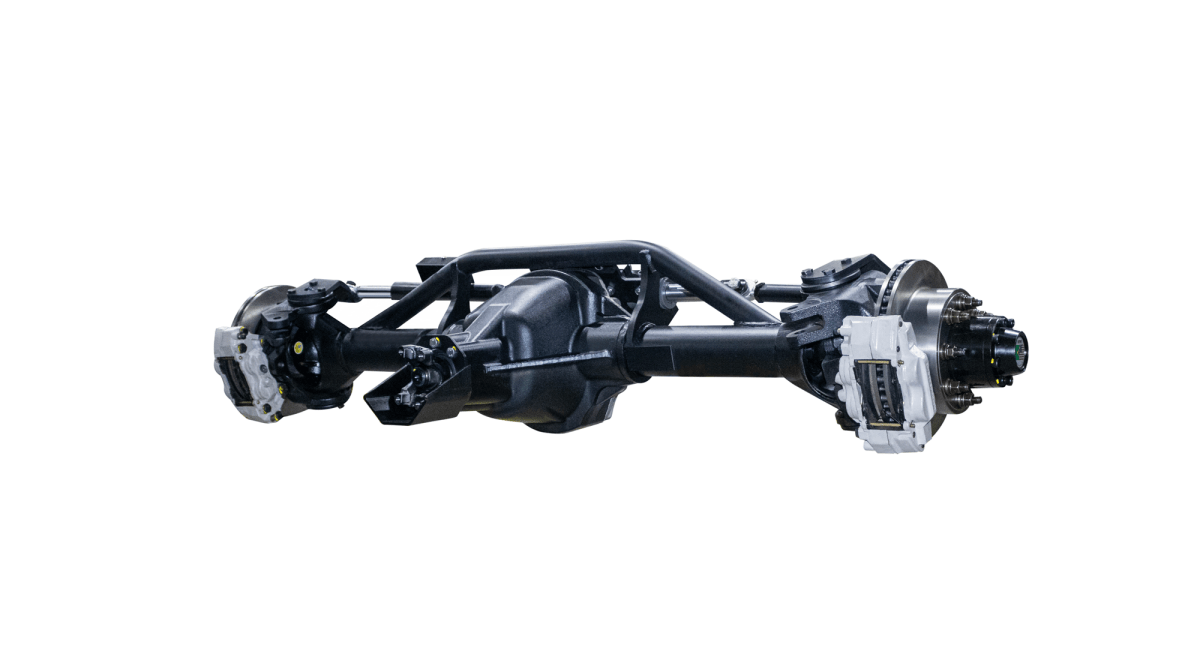

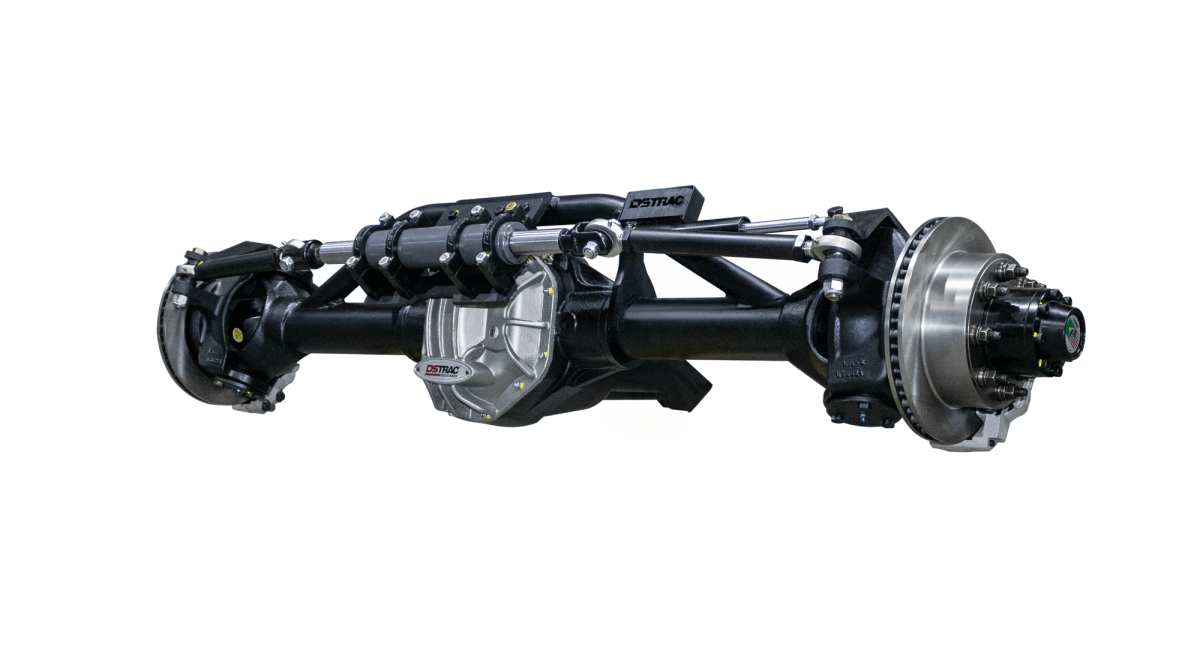

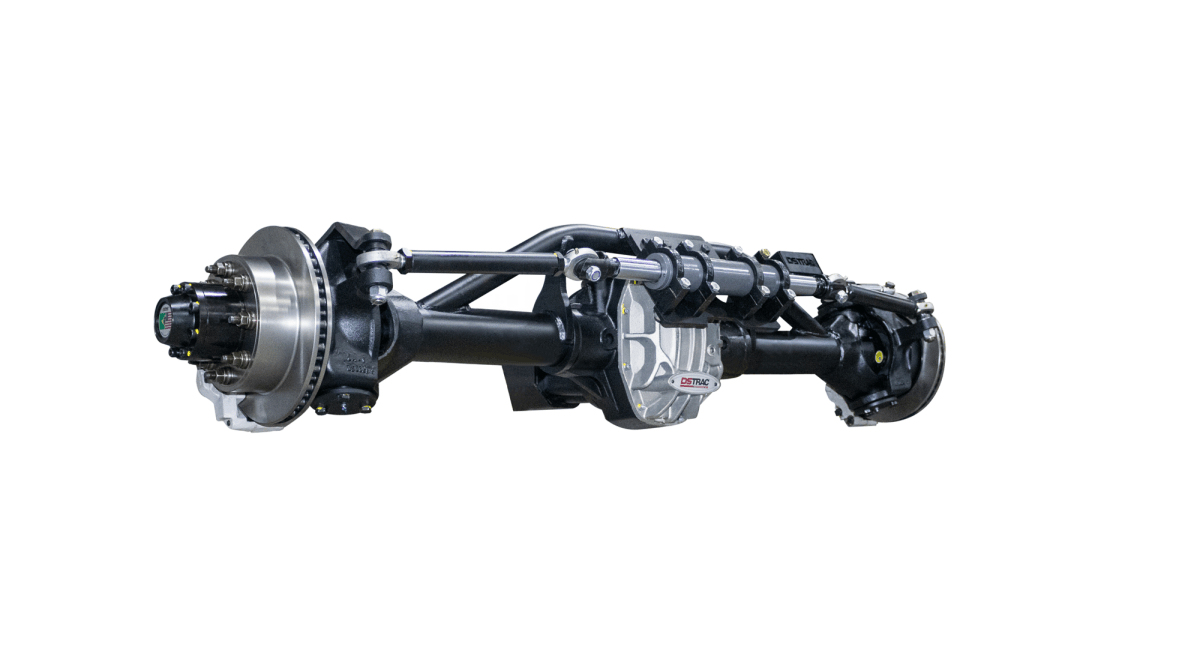

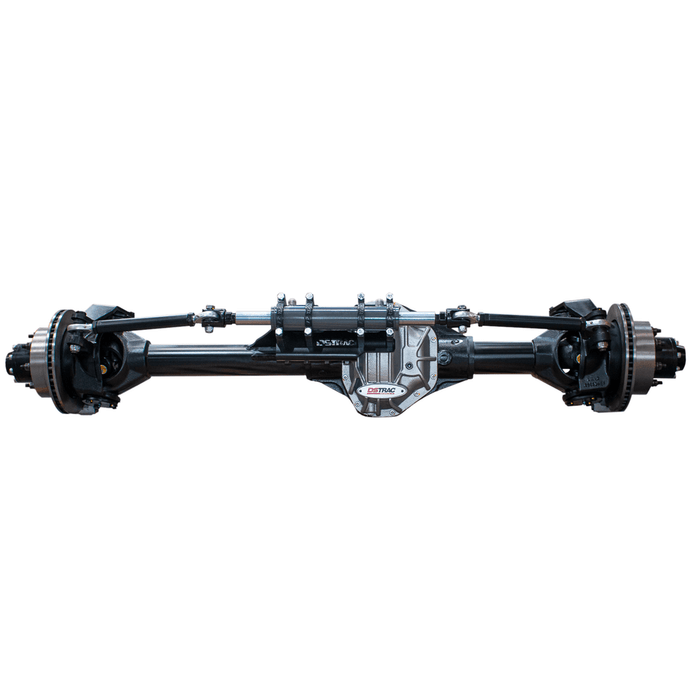

Front Steering 80 Racing Axle 40-Spline

Strongest steering front or rear axle 80 for competition or racing off-road projects.

Equipped with our housing low pinion 80.

• Front Axle or rear axle steering

• Heavy Duty 101mm/4" diameter, 12.7mm/1/2" wall axle tubes.

• DSTRAC size 80 Knuckles

• DSTRAC 43.5mm/1.72" 40-spline SAE 4340 Chromoly axleshafts

• DSTRAC U-joints made of forged SAE 4340 chromoly with self-lubricating bushing caps

• Super kingpin knuckle competition.

• DSTRAC Forged Yoke shaft 1550

• Optimal free wheel manual locking hubs 2.5 TON

• Front Full hydro option and rear steering joystick control

• Vented rotor disc brake assemblies

• 8 lug (8 x 6.5" & 170) with double bolt pattern

• Steel cover with magnetic bolt

• Heavy Duty 12.9" vented Rotors / 4 Piston Disc brake assemblies

• Spool 80 included, optional air locker or electric locker 80 available

• Able to use rear axle with steering joystick system

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
