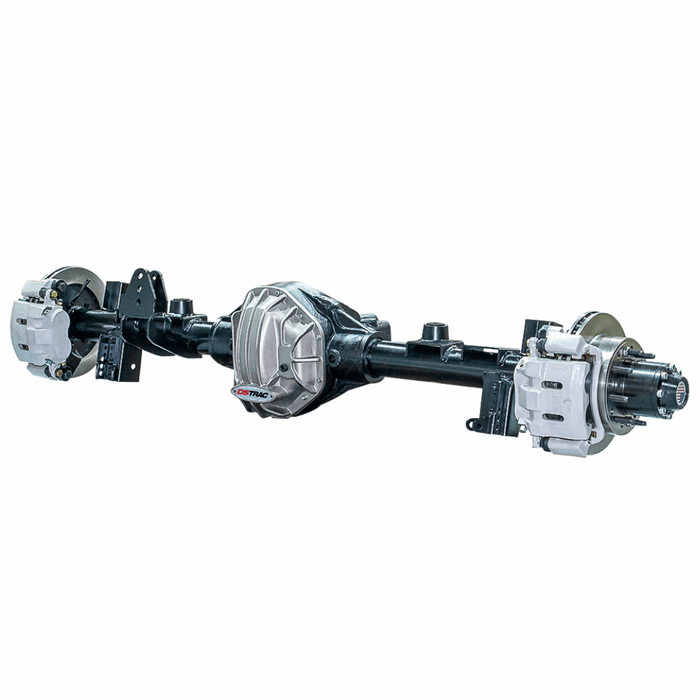

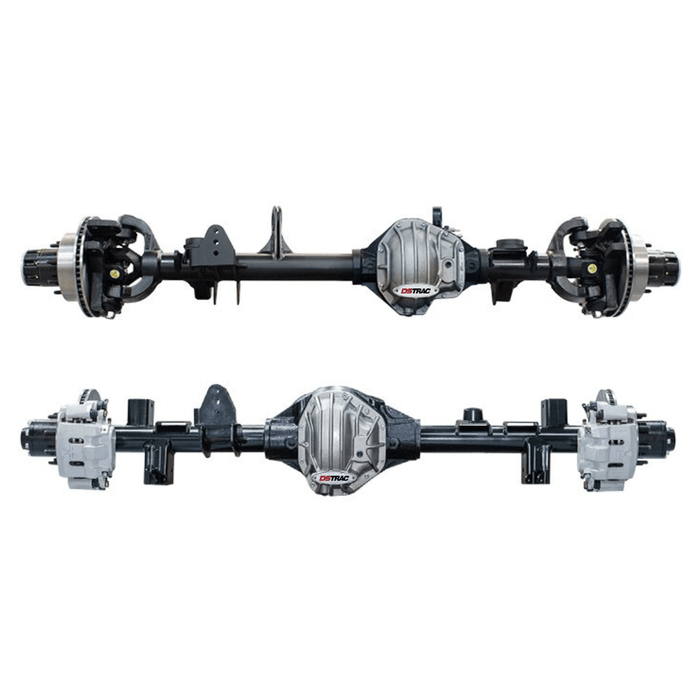

Wrangler/Gladiator Set 70/80 DSTRAC Axles - 40 Spline

Strongest pair axle Wrangler setup in the US industry.

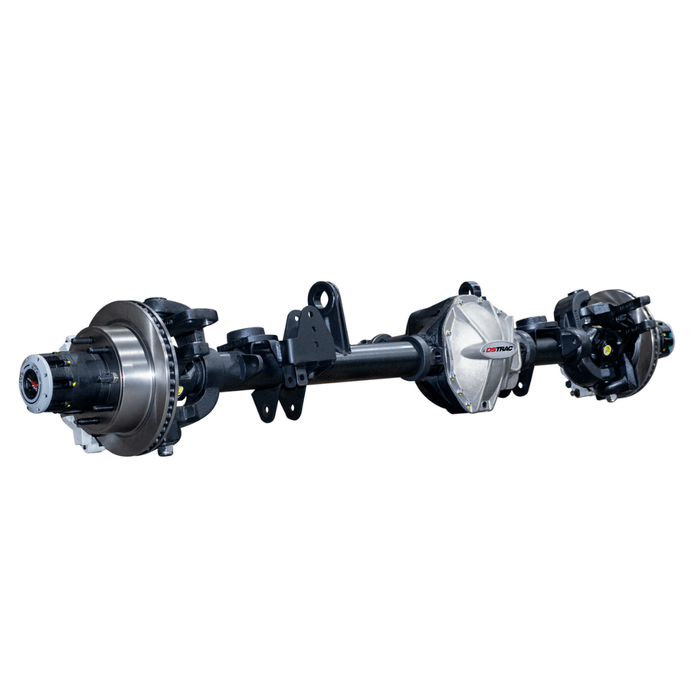

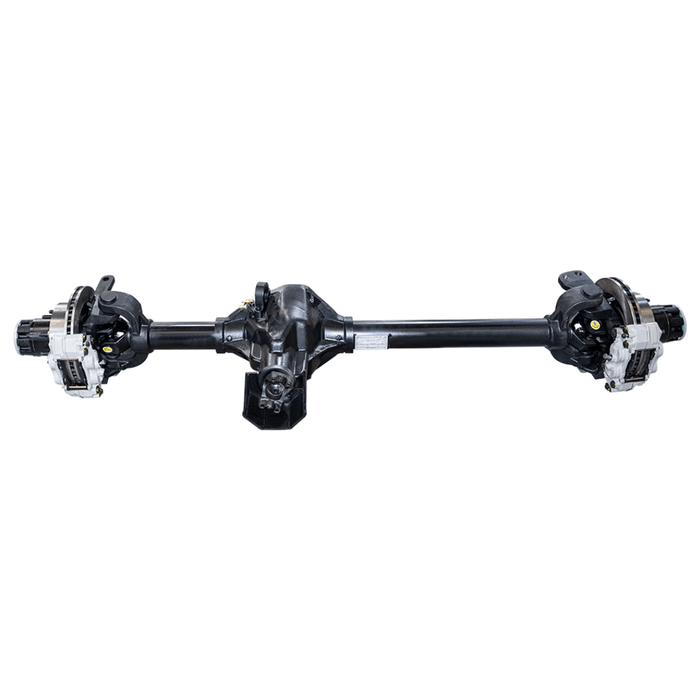

Front Axle 70 High Pinion
10.5" ring & pinion diameter
Complete axle bolt on with brackets and ABS
Heavy Duty 3.5" diameter, 1/2" wall axle tubes
DSTRAC size 70 Knuckles
DSTRAC 1.72" 40-splines SAE 4340 Chromoly axle shafts
DSTRAC 2.5 ton U-joints made of SAE 4340 chromoly with self lubricant bushing caps
F450-F550 Lower Ball joints (same used top/bottom) available around USA
Free Wheel manual locking hubs 2.5 ton 40 splines
Full steering hydro option
Vented rotor disc brake assemblies
8 lug (8 on 6.5" & 170mm) bolt wheel pattern
Steel cover with magnetic bolt
Special triple seal to prevent water and clay from entering the axle
Heavy Duty 12.9" vented Rotors /4 Piston Disk brake assemblies
Skin plate drive shaft optional
Spool or electric locker 70 - 40 splines

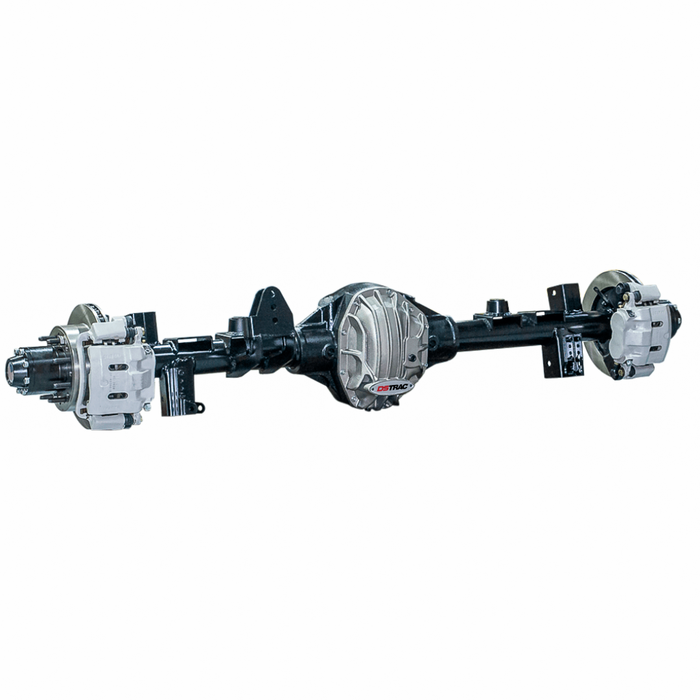

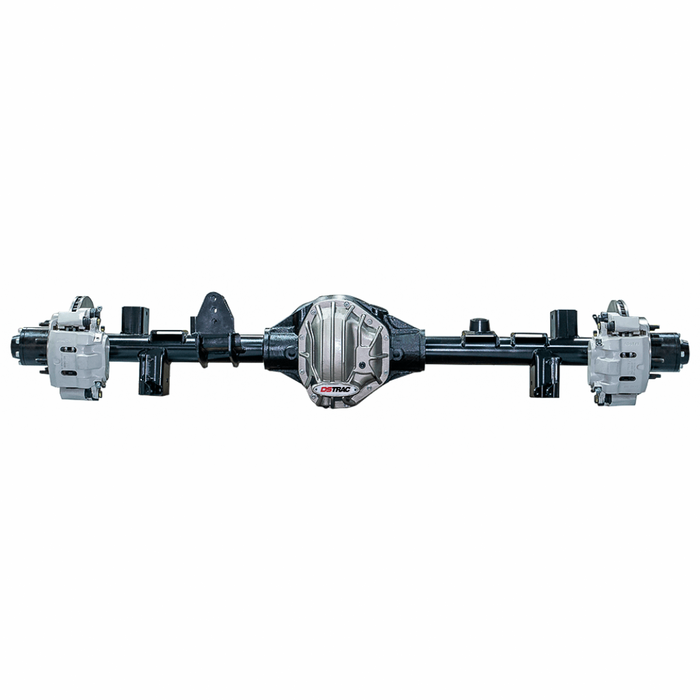

Rear Axle 80
Complete axle bolt on with brackets and ABS retrofit
11.25" Ring & pinion diameter 80
Full float axle Design
Heavy Duty 4" diameter axle tubes and 1/2" wall axle tubes
DSTRAC 1.72" 40-splines SAE 4340 Chromoly axle shafts
Vented rotor disc brake assemblies
8 lug (8 on 6.5" & 170mm) bolt wheel pattern
Steel cover with magnetic bolt
Special triple seal to prevent water and clay from entering the axle
Heavy Duty 12.9" Rotors/2 Piston Disk brake assemblies
Skin plate drive shaft optional
Spool or electric locker 70 - 40 splines

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
