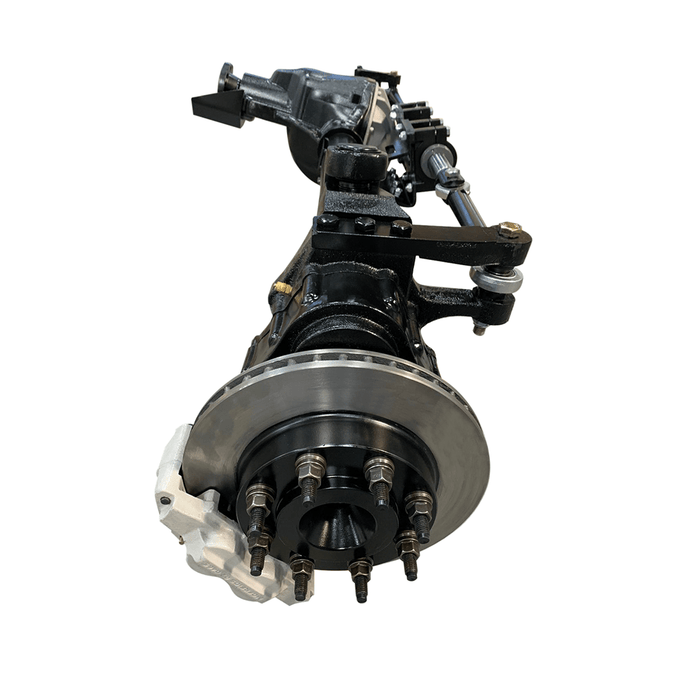

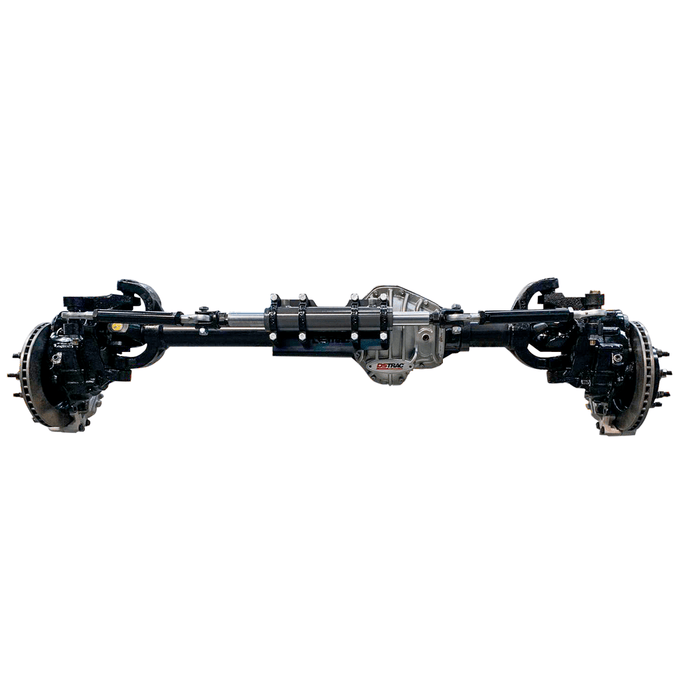

DSTRAC Portal 70 Racing 40 spline (Set)

Equipped with our Ultra 70 high pinion 40 splines

Front and Rear Axles

• In the 70 ring with a 10.5" diameter
• Portal Gear reduction 1:1.20
• Full float axle Design
• Portal housing with 4 gears made from SAE 4320 Chromoly
• Lift the car 5" with stock suspension.
• Heavy Duty 3.5" diameter, 1/2" wall axle tubes.
• DSTRAC 40-spline 4340 Chromoly axleshafts
• DSTRAC Forged Yoke with size options

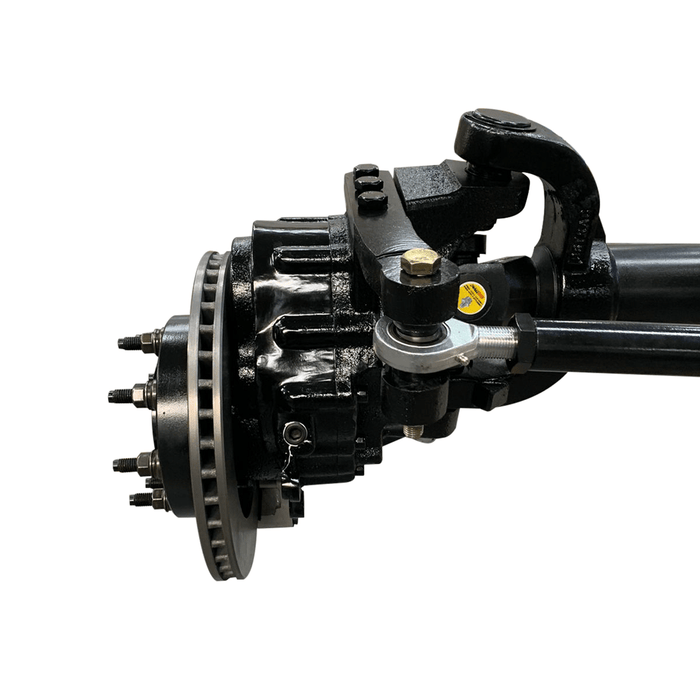

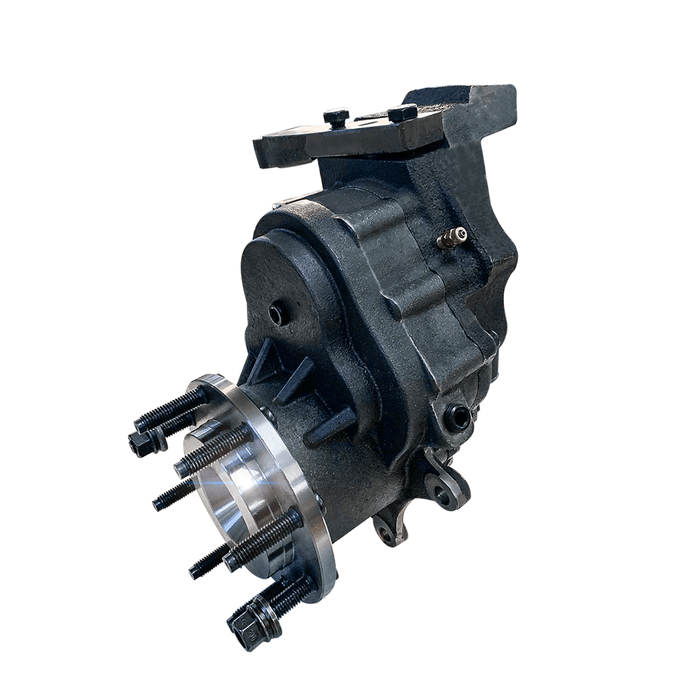

• 70 Portal hubs with 38mm/1.5" splines output diameter 42mm/1.65"
• Vented rotor disc brake assemblies
• 8 x 6.5" & 170mm bolt pattern available
• DSTRAC Abs retrofit (available for some models)
• Steel cover with magnetic bolt
• Special triple seal to prevent water and clay from entering the axle
• Heavy Duty 13.2" vented Rotors brake assemblies

This axle is also available with rear steering.

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
