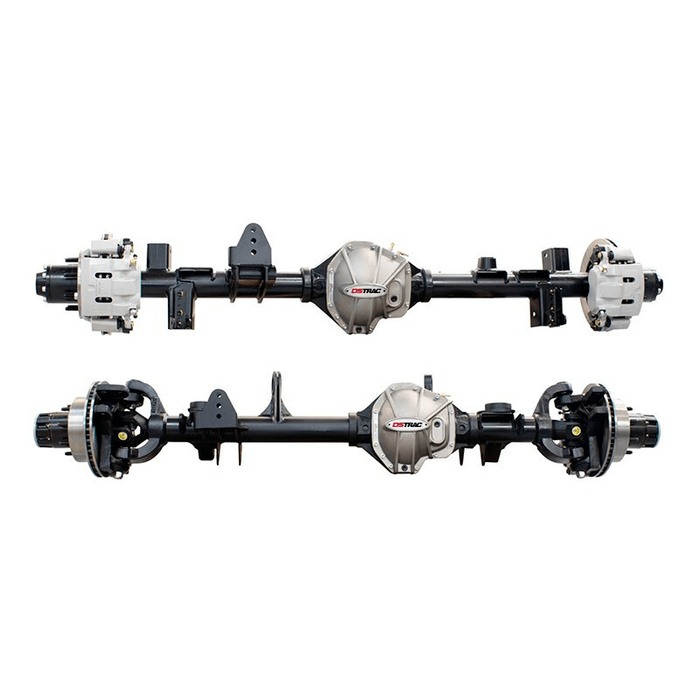

Wrangler/Gladiator Set 70/70 DSTRAC Axles

Strongest front axle in the industry with our Military 2.5 Ton free wheel hubs.

Equipped with our housing Ultra 70 high or low pinion. Special design from innovative housing project where a 60 or 70 ring can be mounted, high pinion rear axle but with a reduced external size.

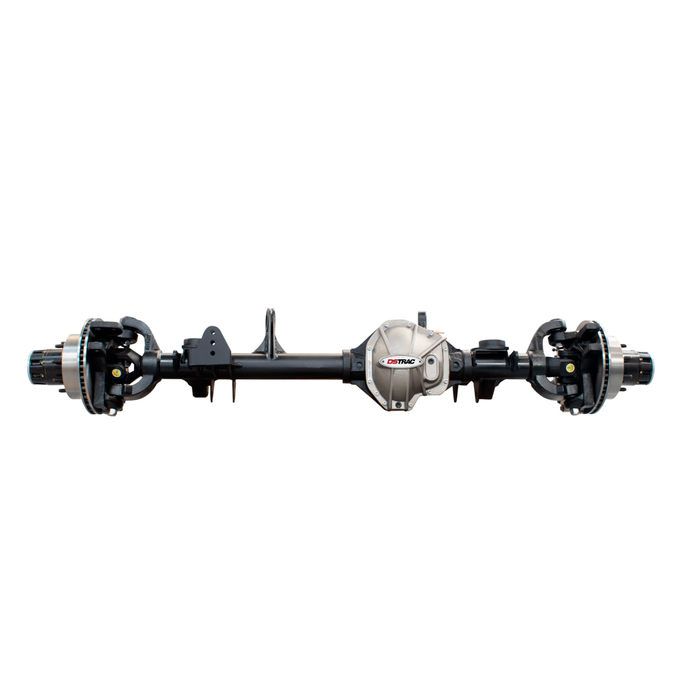

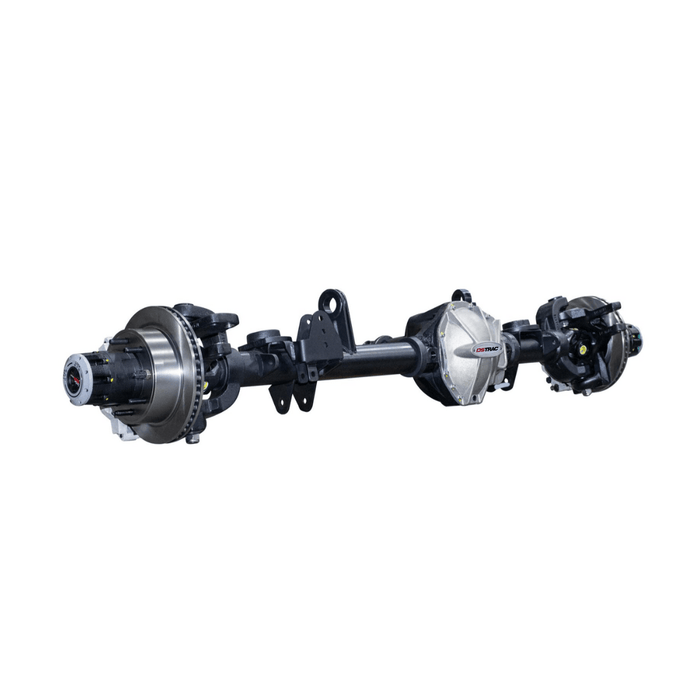

Front Axle high pinion 70

Axle is complete bolt on with brackets and ABS.
Heavy Duty 3.5" diameter, 1/2" wall axle tubes.
DSTRAC size 70 Knuckles
DSTRAC 1.72" SAE 4340 Chromoly axleshafts
DSTRAC U-joints made of forged SAE 4340 chromoly with self lubricant bushing caps.
F250/350 Lower Ball joints (same used top/bottom) available all around USA.
DSTRAC Forged Yoke shaft 1550
Hubs and Free lock Standard from Ford F550
Full steering hydro option
Vented rotor disc brake assemblies
8 lug (8 x 6.5" & 170) with double bolt pattern
Steel cover with magnetic bolt
Special triple seal to prevent water and clay from entering the axle
Heavy Duty 12.9" vented Rotors /4 Piston Disk brake assemblies
Spool or electric locker 70 available

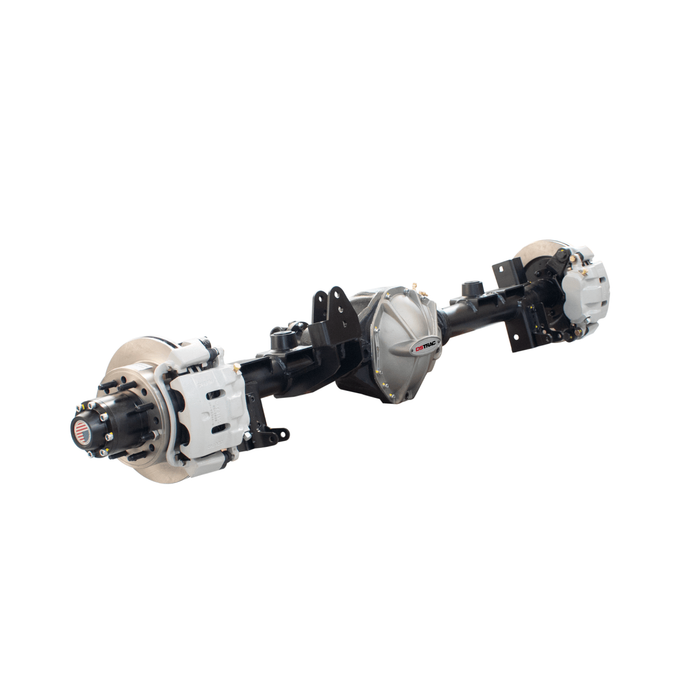

Rear Axle high pinion or low pinion 70 - 40 Spline

Axle is complete bolt on with brackets and ABS
Full float axle Design
Heavy Duty 3.5" diameter, 0.43" wall axle tubes.
DSTRAC 1.72" 40-splines SAE 4340 Chromoly axleshafts
Vented rotor disc brake assemblies
8 lug (8 x 6.5" & 170mm) double bolt pattern
Steel cover with magnetic bolt
Special triple seal to prevent water and clay from entering the axle
Heavy Duty 12.9" Rotors/2 Piston Disk brake assemblies
Spool or electric locker 70 available

Please send us an email to contact@dstrac.com with all your specs so that we can quote you.
